Select Products

MAINTENCE PRODUCTS

Tachometer Series

The SKF Tachometers are fast and accurate instruments utilizing laser or contact to measure rotational and linear speeds. Equipped with a laser and a range of contact adapters, they are versatile instruments that suit a wide range of applications. Having a compact design, they can be operated with just one hand and are supplied in a sturdy carrying case.

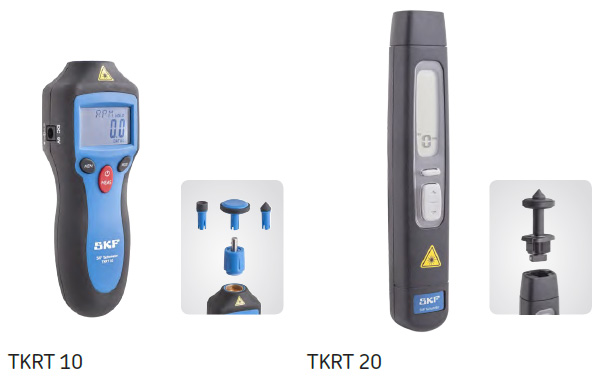

TKRT 10,TKRT 20

TKRT 10

  • Wide speed measurement range: up to 99 999 r/min for laser measurement and 20 000 r/min using contact adapters
  • Measurement modes include; rotational speed, total revolutions, frequency, surface speed and length in both metric and imperial units
  • Laser can be used for safe and quick, non-contact rotational speed measurements at distances up to 0,5 m (20 in.)
  • Large back-lit LCD display enables easy reading in almost all light conditions
  • Angular range of ±45° to target helps facilitate easy measuring
  • Up to 10 readings can be stored for later reference



TKRT 20
  • The user can select the following to measure:
    • rpm, rps, m, ft or yds per minute or second,
    • length or revolution counting, or
    • time interval
  • Wide speed range and the various measurement modes make the SKF TKRT 20 suitable for measuring speed in many applications
  • Large angular range of ±80° to target facilitates easy measuring in areas where straight–line access is difficult
  • The laser optical system allows easy and quick measurements at a safe distance from rotating machinery
  • The large inverting LCD display facilitates easy reading, even when pointing the unit down into the machinery
  • The SKF TKRT 20 can also be equipped with a remote laser sensor, which is optionally available



Product Table
