Select Products

MAINTENCE PRODUCTS

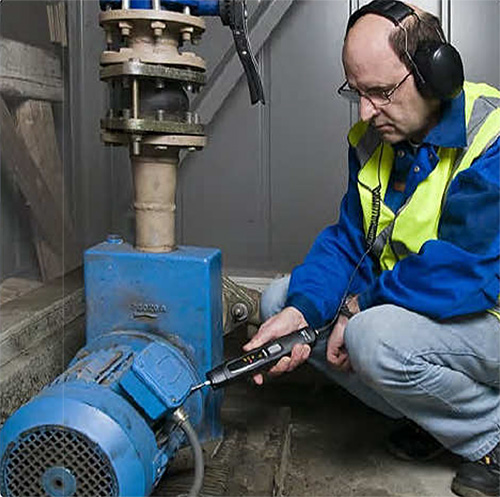

Electronic Stethoscope

SKF Electronic Stethoscope TMST 3

Electronic Stethoscope TMST 3
The SKF TMST 3 is a high quality instrument enabling the determination of troublesome machine parts by the detection of machine noises. TMST 3 includes a headset, two different length probes (70 and 220 mm) and a pre-recorded audio CD demonstrating the most common encountered troublesome machine noises, all supplied complete in a sturdy carrying case.

  • User friendly and easy to operate, no special training required
  • Lightweight ergonomic design makes it easy to operate with one hand
  • Excellent sound quality helps to reliably identify the possible cause of the noise
  • Excellent quality headset for optimum sound quality even in very high-noise environments
  • Pre-recorded demonstration CD and output for analogue recording help facilitate analysis and comparison
  • Supplied with two probes, 70 and 220 mm (2.8 and 8.7 in.) long
  • Adjustable digital volume control up to 32 levels to reach desired volume

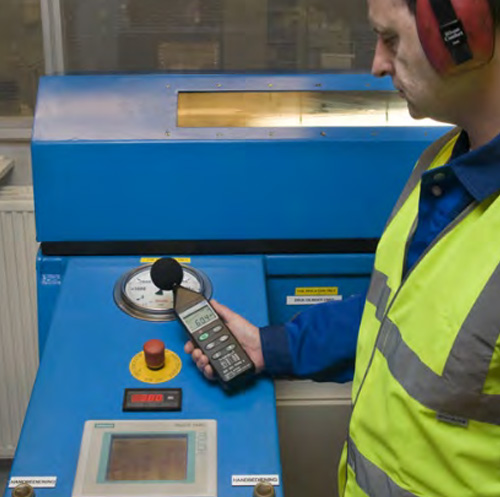

SKF Sound Pressure Meter TMSP 1

SKF Sound Pressure Meter TMSP 1

The SKF TMSP 1 is a high quality, handheld instrument for measuring the sound level in decibels. The environmental noise is picked up by the microphone and then processed by the handset. The noise can be monitored both quantitatively and qualitatively. The SKF Sound Pressure Meter is supplied in a carrying case complete with windshield, calibration screwdriver, jack for external outputs and an alkaline battery.

  • User friendly and easy to operate, no special training required
  • dBA and dBC scale weightings for both general sound level and low frequency noise measurements
  • Fast and slow time weighting enables either normal measurements or the average level of fluctuating noise
  • Four different measurement scales to suit almost all situations
  • User selectable backlight for use in environments with poor lighting
  • Four digit LCD panel with both digital and bar graph display
  • Max and min function for peak measurements and alarm function to indicate when the noise level is too low or too high
  • Tripod mounting thread for use when the instrument must remain in the same position for a prolonged period

SKF Ultrasonic Leak Detector TMSU 1

SKF Ultrasonic Leak Detector TMSU 1

The SKF TMSU 1 is a high quality, user-friendly instrument enabling the detection of air leaks by means of ultrasound. Leaks are caused by fluid flowing from a high pressure environment to a low pressure environment, creating turbulence. The turbulence generates high frequency sounds (so called ultrasound) that can be detected by SKF TMSU 1. The operator simply guides the instrument to the loudest point, which helps locate the leak location.

SKF TMSU 1 also includes a headset, rubber nozzle and batteries, supplied complete in a sturdy carrying case.
  • Lightweight compact design makes it easy to operate with one hand
  • User friendly, no special training required
  • By identifying air leaks and fixing them, energy consumption is significantly reduced
  • The flexible tube allows access to confined spaces
  • The headset provides high sound quality even in very high-noise environments, and also helps to protect the ears
  • Wide operating temperature

SKF Electrical Discharge Detector Pen TKED 1

SKF Electrical Discharge Detector Pen TKED 1

The SKF TKED 1 (EDD Pen) is a simple to use hand-held instrument for detecting electrical discharges in electric motor bearings. Electrical discharges are a result of motor shaft voltages discharging to earth through the bearing, causing electrical erosion, lubricant degradation and ultimately bearing failure.

Electric motors are more vulnerable to suffer electrical erosion in bearings when controlled by a Variable Frequency Drive. When incorporated into a predictive maintenance programme, the EDD Pen can help detect bearings more susceptible to failure, and to a significant degree, prevent unplanned machine downtime.

Unique remote solution allows operation at a distance from the motors. This helps protect the user from touching machinery in motion
  • SKF developed technology*
  • No special training required
  • Capable of detecting electrical discharges on a time base of 10 seconds, 30 seconds or infinite
  • LED backlit screen, allows use in dark environments
  • IP 55 can be used in most industrial environments
  • Supplied standard with batteries, a spare antenna and language-free instructions for use in a carrying case

Product Table

  • Technical Data - Electronic Stethoscope TMST 3
  • Technical Data - Sound Pressure Meter TMSP 1
  • Technical Data - Ultrasonic Leak Detector TMSU 1
  • Technical Data - Electrical Discharge Detector Pen TKED 1
